PPCTS proudly represents the following industry leading companies:



Member of



Folder Gluer Packing Systems, Prefeeds and more.

IMPACK PACKAGING specializes in the analysis of work methods and the design and manufacturing of equipment for manufacturers of folding carton, micro-fluted and corrugated packaging. PPCTS & IMPACK PACKAGING offer innovative solutions in the area of ergonomics, productivity and workplace health and safety, with a range of products tailored and adapted to today’s folding carton folder gluer packing manufacturing needs.

DEMO CENTER IN WAUKESHA WI

CALL US FOR INFORMATION AND EQUIPMENT DEMONSTRATIONS

ERGOSA 8 UNIVERSAL FOLDER GLUER PACKER

VIRTUO AUTO PACKER

CE Certification for European deliveries     UL Electrical Certification for USA, Canada and other world deliveries


FROM MANUAL PACKING STATIONS TO AUTOMATIC PACKERS, WE HAVE A SOLUTION FOR YOUR NEEDS



Click on the links below for more details and see our videos at the bottom of the page below.    CLICK HERE FOR VIDEOS



90 degree transfer conveyor CT
Universal packer Ergosa A (Small to medium-large boxes, lower cost packer with limited adjustments and options)

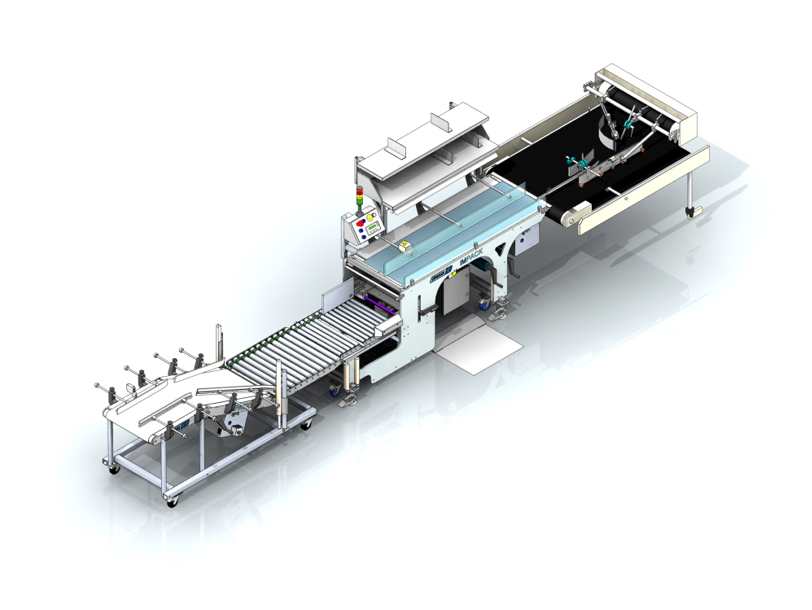

Universal packer Ergosa C (Small to medium-large boxes, up to 3 levels deep with adjustments and fast make ready)
Universal packer Ergosa D (Small to medium-large boxes, with capabilities of more than 3 levels deep, adjustments and fast make ready)
Universal packer Ergosa with PERPACK Station (Can be installed on the Ergosa 8 Universal packer for the ideal solution for auto/lock bottoms and 4/6 corners from medium to large sizes)
Pick & Place PP1 - PP2 (Small to medium-large boxes, simple low cost packing station)
Automatic packer VIRTUO (Medium-Small to large boxes, packed in one row and one level deep into case with fast make ready, including straight line, 4 - 6 corner boxes, paperboard, micro-flute and corrugated) The perfect replacement for older MULTIFOLD INTERNATIONAL Packers
Carton turner IN 1.6 (90 degree carton turner for small to medium straight line boxes. Installs on gluer compression section)
Carton turner IN 2.3A & 2.3B (90 degree universal carton turner system. Will rotate most straight line, 4 & 6 corners, auto-lock bottoms cartons and more)
Carton turner IN 3.0 (The most advanced 90 degree universal carton turner system. Will rotate most straight line, 4 & 6 corners, auto-lock bottoms cartons and more)
Semi-automatic packer Ergosa FP (Flat packing of unfolded boxes into corrugated cases)
Stacker STA 1.0 (Stacking system for gluers, window patching machines, rotary cutter and other specialized applications)
Auto/Lock bottom carton batch inverter (Batch inverting of auto-lock bottom cartons for semi or automatic packing - contact us for more information)
Automatic prefeed system Maestro BRH2.2 (A new productive approach to folder gluer prefeeding - contact us for more information)
IMPACK PACKAGING, founded in 2001, designs and manufactures a wide range of innovative, productive, cost effective and ergonomic packing solutions for today’s folding carton and micro flute folder gluer manufacturing needs.

Initially challenged by local Canadian folding carton manufacturers to reduce work related injuries suffered by folder gluer packing personnel, IMPACK successfully answered that challenge by designing and manufacturing equipment solutions that in addition to address workplace health and safety issues, also provides increased productivity and throughput.

IMPACK offers standard packing systems for typical folder gluer operations from short to long run and low to high speed applications, as well as specifically customized solutions to handle unconventional applications and productions.

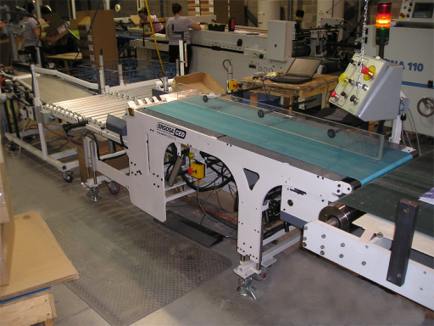

The ERGOSA UNIVERSAL folder gluer packer was developed to reduce unnecessary movements made by packing personnel, increase ergonomics and organizes the packing method in a more fluid motion that greatly improves the packing personnel’s efficiency. The ERGOSA UNIVERSAL packing method removes stress from the packing personnel’s joints, tendons and wrist, as the cartons are slid into the case without any lifting, resulting in less injuries and greater packing efficiency.

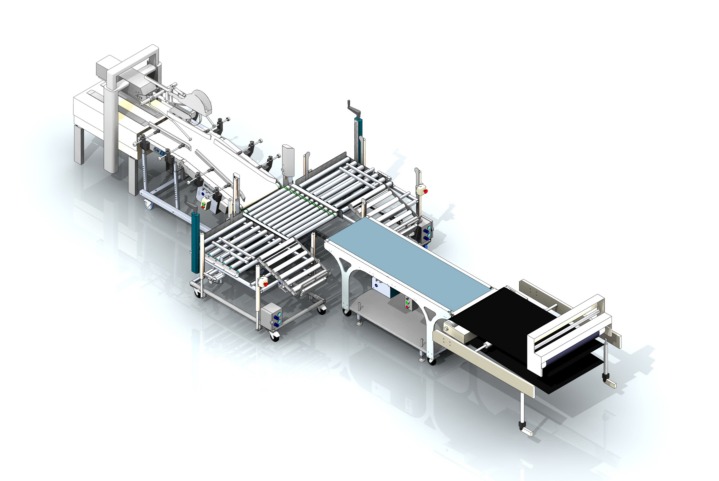

The PERPACK and MAE™ attachments when attached to the ERGOSA UNIVERSAL packer, allows for easy packing of medium to larger 4 and 6 corner cartons when the traditional ERGOSA sliding method is less suitable, some pre-alternated lock bottom cartons, as well as very small straight line boxes. The exit end of the ERGOSA can also be equipped with four flap case flap closing devices, as well as case marking systems.

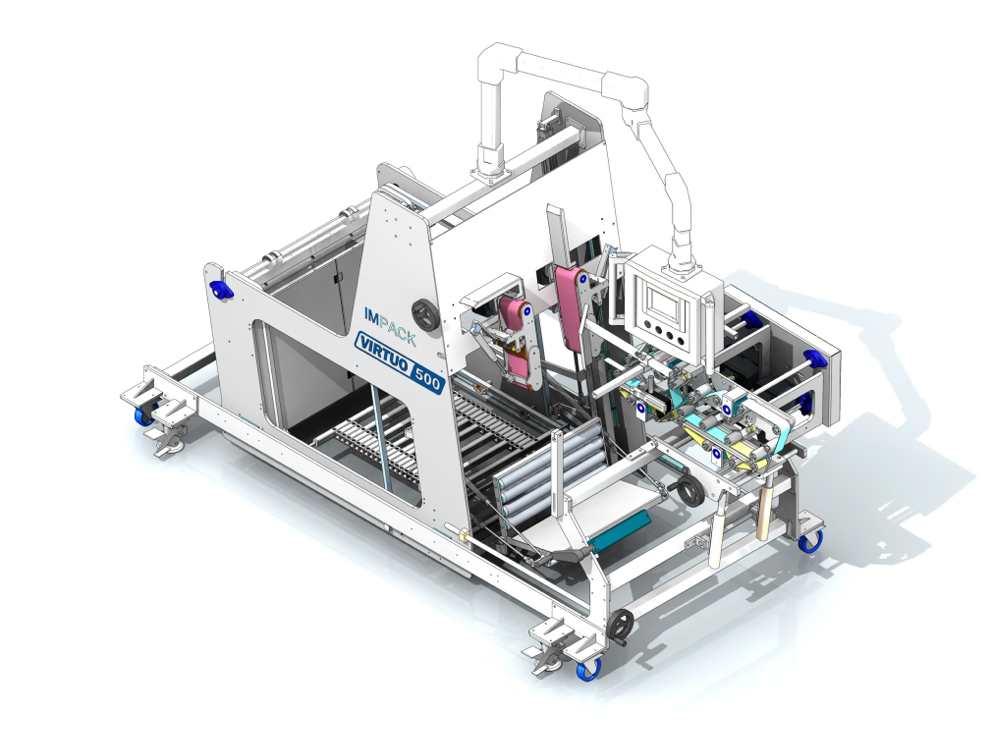

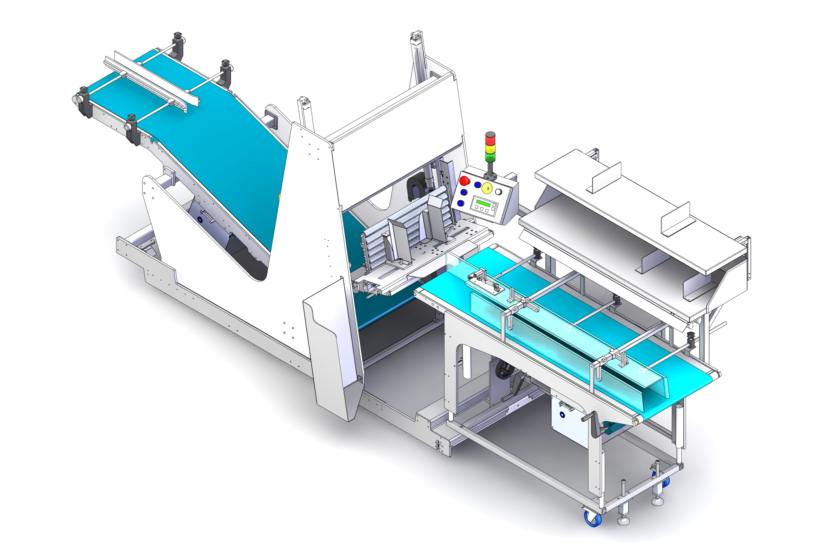

The VIRTUO AUTOPACKER is a single row, single level automatic packer for folding cartons, micro fluted cartons and some corrugated boxes. The VIRTUO automatic folder gluer packer can pack straight line, 4 & 6 corners, as well as pre-alternated lock bottom cartons. The straight through packing approach of the VIRTUO, with a fix feeding, counting and separation section, combined with a vertical corrugated case descent, allows for high performance packing of small to very large boxes. The VIRTUO can handle, recovered open top lock bottom corrugated cases, corrugated cases with or without top flaps and the bottom flaps do not require taping prior to packing. The case feeding of empty corrugated cases into the VIRTUO is done automatically from the top and the filled cases are ejected automatically from the back of the packer, in straight line with the gluer, to a taping device or conveying system.

IMPACK also specialises in preconditioning systems to prepare the carton or box shingles exiting the folder gluer for packing. IMPACK offers various shingle turning, as well as batch alternating devices.

In addition to the existing IN 1.6 and IN 2.0 turning system, IMPACK as now introduced the new patented IN 3.0 CARTON TURNER which allows turning of carton or box shingles exiting the folder gluer compression section, right or left or flow straight through, and enter into a UNIVERSAL packer, VIRTUO or packers from other manufacturers, without the need to move the packing system from the centerline of the gluer, reducing start-up and make ready time.

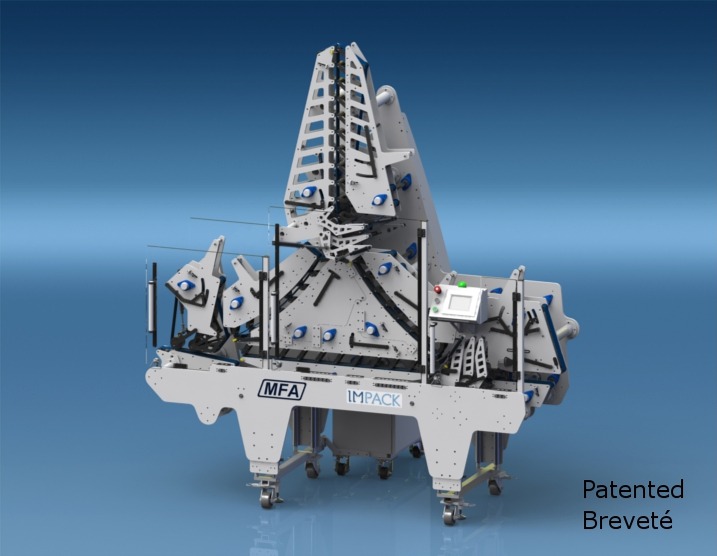

The patented MFA batch inverting system inverts auto/lock bottom folding carton boxes in preset counted batches for packing into corrugated cases with the UNIVERSAL or VIRTUO packers or by hand. The MFA allows for straight through passage of the carton shingle when batch inverting is not required without the need to remove the unit, to produce other types of cartons.

IMPACK’ solutions are modular and can be installed in several possible configurations to meet each customer’s specific needs and situation. With continuous investments in R&D to developed new technologies and equipment, IMPACK is the leading expert in folder gluer packing solutions.

For more information contact us at 262 695-7536 or fill out the information request form below
