Specifications:
- Single level /
single row packing;
- Can be installed on all
folder gluer models from any manufacturer, new and
existing;
- Ideal solution for classic straight line boxes, 4/6 corners
and auto/lock bottoms from medium to very large sizes;
- Excellent solution
for microflute boxes;
- On wheels and easy to
move quickly from one gluer to another;
- Backside case
ejection system for case conveying;
- Laser counter;
- Speed up to
7cases/minutes;
- Case sizes:
Width: min 6" - Max 24"
Length: min 8" - Max 28"
Height: min 5" - Max 16"
*The Virtuo is also available in a small version for
small boxes and in a larger version for larger boxes;
|
|

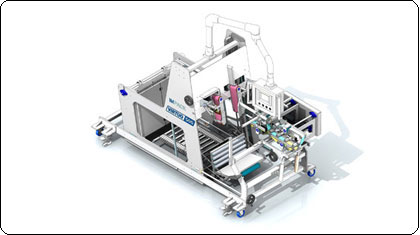

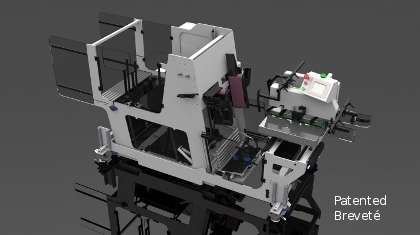

Automatic packer VIRTUO
« HIGH PERFORMANCE, COMPACT
AND ECONOMICAL »
The Virtuo series of
automatic packers are known for there simple design, small
footprint and lowest cost for any packer on the market today
in this category. With it's many available options and
configurations the Virtuo can pack many sizes of cartons to
include medium to very large cartons (paperboard and
microflute) and various styles of straight line, 4/6 corners
and automatic/lock bottom boxes in one level and one row.
Current applications and installations include: wine boxes,
detergent boxes, pizza, fast foods, cereals, etc.
A few options available
with the Virtuo:
- Case magazine and case feeder;
- Inline corrugated case former;
- Virtuo Mini™ version for very small
boxes into trays;
- MIC™ control of the gluer from the
packer;
- Carton turners for orientation of the
cartons prior to packing;
- Carton inverters for auto lock bottom
cartons;
 |
