Specifications:

  • Can be installed on all manufacturer makes and models of folder gluer, new or existing;
  • Rotates all types of boxes (small to very large);
  • 2 possible configurations: left or right, and straight through;
  • Two control modes available: stand alone or directly controlled by the Ergosa™ or Virtuo™ packer;
  • Box sizes:
    Width: Min 4" (100mm)
              Max 24" (610mm)
    Length: Min 5" (125mm)
                Max 24" (610mm)



Specifications:

  • Can be installed on all manufacturer makes and models of folder gluer, new or existing;
  • Rotates all types of boxes (small to very large);
  • 3 possible configurations: left, right, and straight through;
  • Two control modes available: stand alone or directly controlled by the Ergosa™ or Virtuo™ packer;
  • Box sizes:
    Width: Min 4" (100mm)
              Max 24" (610mm)
    Length: Min 5" (125mm)
                Max 24" (610mm)

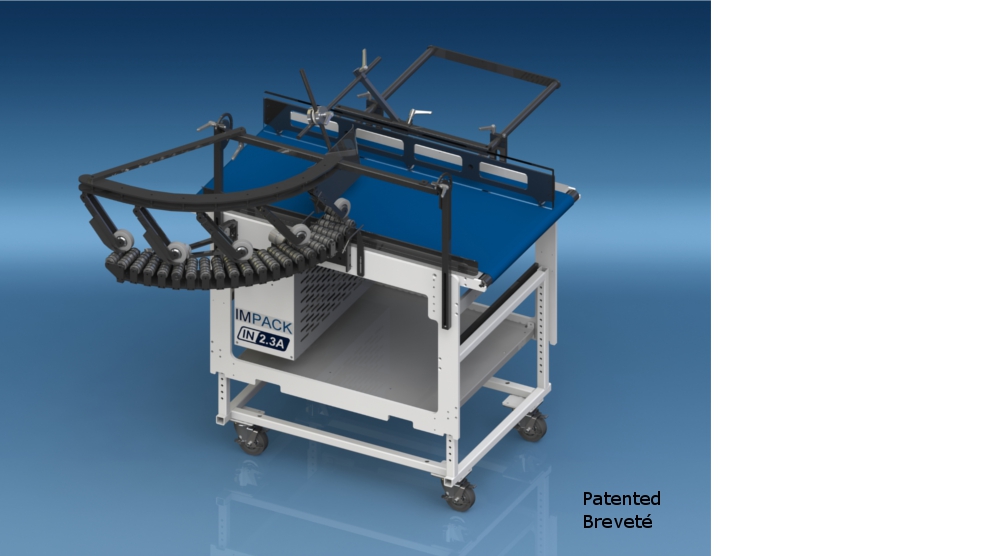

Carton Turner IN 2.3A

« SIMPLE AND RELIABLE CARTON TURNER. »

The IN-2.3A Carton Turner can rotate all types of cartons 90°. It is available in two configurations depending on the desired packing specifications: « left turn » or « right turn ». It also allows for straight-line processing of 4/6 corner boxes, without having to remove the unit. The IN 2.3A Carton Turner can be used inline with all IMPACK™ packing systems.

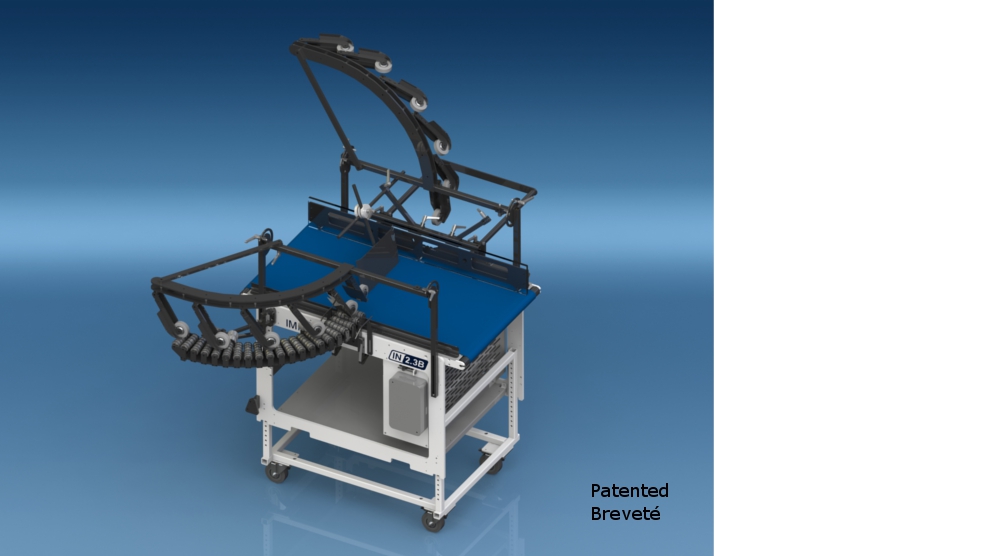

Carton Turner IN 2.3B

« A COMPLETE COMPACT CARTON TURNER.»

The IN 2.3B carton turner rotates all types of cartons 90° to the left or right depending on desired packing specifi cations. It also allows for the straight-line processing of 4/6 corner boxes, without having to remove the unit. The IN 2.3B carton turner can be used inline with all IMPACK™ packing systems.



CLICK HERE FOR VIDEOS


For more information contact PPCTS at 262-695-7536, via email at sales@ppcts.com or fill the contact form below:
