Batch Inverter MFA

Batch Inverter MFA for auto/lock bottom folding carton applications

« BATCH INVERTING FOR AUTO/LOCK BOTTOM BOXES THAT NEED TO BE PACKED IN ALTERNATING BATCHES. »

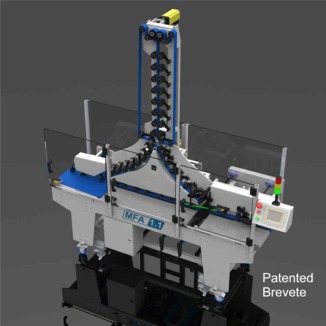

The MFA™ lock/auto bottom batch inverting system, allow for the inverting of precisely counted batches of various thicknesses, types and styles of lock/auto bottom cartons with re-shingling of the cartons for semi or auto packing. The patented MFA™ system from Impack can be used in line with the Impack Ergosa and Virtuo packers, as well as some auto packers from other manufacturers. The MFA™ system includes a bypass mode (non inverting mode) that allows the production of straight line, 4 and 6 corner and other type of cartons, not requiring inverting, with no restriction to production speed. Available with many options for different types and sizes of lock/auto bottoms folding carton boxes, the MFA™ is by far the most simple, flexible and economical solution available on the market.



CLICK HERE FOR VIDEOS

Specifications:

  • Fast setup with minimal changeover time;
  • Can be installed in line with any existing or new folder gluer;
  • Can be installed in several possible configurations with our Carton Turners IN-2.3 or IN-3; prior, after or at both ends of the MFA™;
  • Can be installed in line with any of our semi and automatic packing systems and in some cases on existing packing systems from other manufacturers;
  • Allows for straight through passage of the cartons when batch inverting is not required without the need to remove the MFA™ unit.

For more information contact PPCTS at 262-695-7536, via email at sales@ppcts.com or fill the contact form below:

If you have questions concerning our products, services or have special requests, send mail to info@ppcts.com
