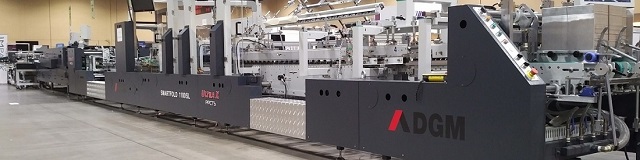

PPCTS DGM Smartfold Ultra X folder gluer

Folder Gluer and Folder Gluers - SMARTFOLD, TECHNOFOLD AND MEGAFOLD.



Where Productivity meets Affordability for folding gluing requirements. Our High Performance Folder Gluer Solutions by PPCTS, have to most versatile folding and gluing capabilities in the industry and offers both standard folder gluer solutions or custom configured folder gluers to meet your converting requirements with the shortest delivery capabilities.



High performance SMARTFOLD, TECHNOFOLD AND MEGAFOLD solutions to maximize your profitability. The Smartfold, Technofold and Megafold are equipped and designed to meet today's challenging folding gluing applications. The Smartfold, Technofold and Megafold are available in several different configurations to meet  each converter's specific needs.

HIGH PERFORMANCE FOLDER GLUER SOLUTIONS FOR FOLDING AND GLUING FOR FOLDING CARTONS & CORRUGATED BOARD APPLICATIONS

Sales & Demo Center in Waukesha WI, Contact PPCTS for more information

262 695-7536, sales@ppcts.com

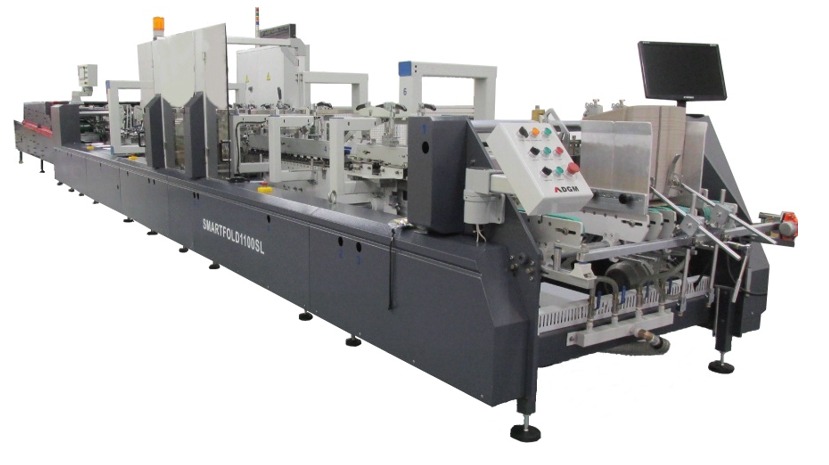

SMARTFOLD SERIES Folding Cartons

The SMARTFOLD SERIES of Folder Gluers is specially designed and ruggedly built for the most demanding folding-gluing needs of folding carton converters, commercial printers and trade finishers for short to long run lengths and covering a wide range of industries. It is an easy folder-gluer to setup and operate, and comes with state of the art technology, features and electronics. The PC version includes accessories for straight line and crash lock bottom boxes, while the SL model folder-gluers includes 4&6 corner back folding. The Classic folder-gluer is the shortest model, followed by the Classic X2 which features two crashlock sections and then with ULTRA series of folder-gluers which include longer section configurations with the X, XL and X2S models to tackle more difficult and faster folding-gluing needs.

Features include: Hand Held Radio Operator controller, safety covers on all drive shafts and chains, pivoting operator HMI touch screen(s), Carton Blank Aligner, various Pre-folding, crachlock autobottom and final folding section lengths that can be configured to specific customer needs, intelligent servo drives technologies, inline ejection, adjustable crushing rollers at the entrance of the trombone section, squaring devices in the trombone and compression sections and more. The SL models of folder-gluers includes an independent high speed precision servo driven back fold system which is very easy to setup for the operators.

Additional options include: Memory Job recall for the motorized carriers and more.

Click here to view Smartfold folder gluer videos

We offer several models of folding and gluing folder gluers, as well as custom configured folder gluer solutions. See below for more detailed information

SMARTFOLD CLASSIC - details page

PPCTS DGM Smartfold Classic folder gluer

SMARTFOLD CLASSIC X2 - details page

PPCTS DGM Smartfold Classic X2 folder gluer

SMARTFOLD ULTRA - details page

PPCTS DGM Smartfold ULTRA folder gluer

SMARTFOLD ULTRA X - details page

PPCTS DGM Smartfold ULTRA X folder gluer

SMARTFOLD ULTRA X2 - details page

PPCTS DGM Smartfold Classic X2 folder gluer

SMARTFOLD ULTRA XL - details page

PPCTS DGM Smartfold ULTRA X folder gluer

SMARTFOLD ULTRA X2S - details page

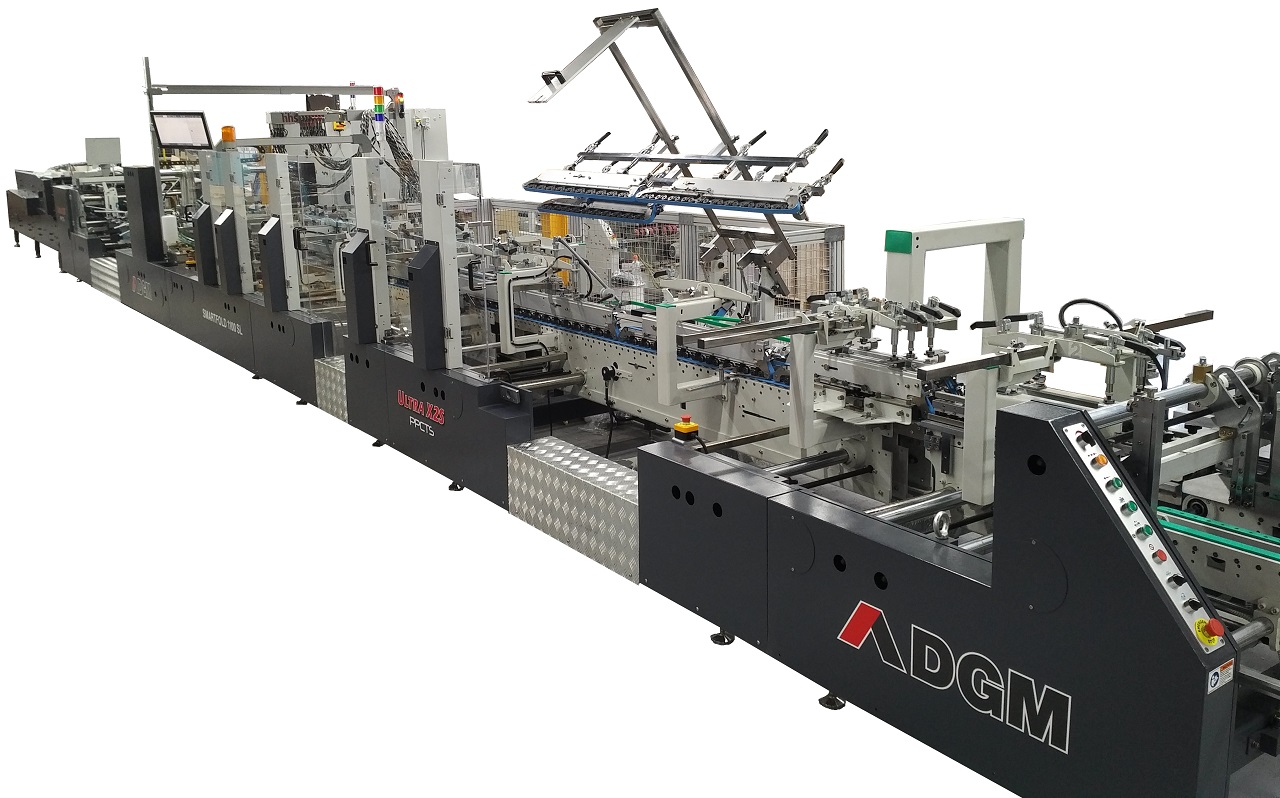

PPCTS DGM Smartfold ULTRA X2S folder gluer

SMARTFOLD 1100 ULTRA X2T & X2ST with SmartTurn details page - Coming soon!

PPCTS DGM Smartfold 1100 ULTRA X BCB

SMARTFOLD 800RA Beverage carriers

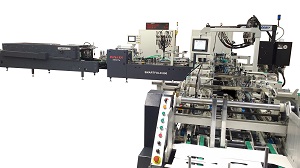

PPCTS DGM Smartfold 800RA folder gluer



TECHNOFOLD for folding cartons, microflute and corrugated

The TECHNOFOLD which includes upper driven carriers, is specially designed and ruggedly built for the folding gluing needs of the most demanding packaging companies, commercial printers and trade finishers that require the ability to produce folding cartons, micro flute and corrugated boxes on the same folder gluer. It is easy to setup and operate, and comes with state of the art technology, features and electronics. The TECHNOFOLD PC folder-gluer version includes the accessories for straight line and crash lock bottom boxes as the TECHNOFOLD SL model further includes two servo backfolds for the production of 4&6 corner designs.

Standard Features include: Strategically located upper driven Carriers belts, cross motorization for all Carriers, Hand Held Radio Operator controller, Carton Blank Aligner and Pre-fold sections, as well as Independently servo controlled feeder, main gluer, trombone with crushing rollers and squaring spanker, and compression. The SL model includes an independent high speed precision servo driven back fold system which is very easy to setup for the operators, as well as a Belted 6 corner folding device.

Additional options include: Memory Job recall for motorized carriers, Squaring devices in the trombone and compression, blank ejection system in the trombone section, and more.

Click here to view Technofold videos

The Technofold is available in widths of 800, 1100 and 1450mm

TECHNOFOLD folder gluers - details page

PPCTS DGM Technofold folder gluer

TECHNOFOLD PC - Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD SL - Suitable for straight-line, crash-lock bottom & double wall, 4 & 6-corner boxes.


MEGAFOLD Specialty gluer for microflute and corrugated

The MEGAFOLD Specialty Folder Gluers are specially designed and ruggedly built for the most demanding folding-gluing needs for corrugated converter from small to long run job lengths with heavy solid board to thick B & C flute corrugated and multiwall cartons. It is an easy folder-gluer to setup and operate, and comes with state of the art technology, features and electronics. The PC version includes accessories for straight line and crash lock bottom boxes, while the SL model folder-gluers includes 4&6 corner back folding.

Standard Features include: Motorization for all upper and lower Carriers that include high precision linear guides, Driven upper and lower carrier belts, Hand Held Radio Operator controller, Carton Blank Aligner and Pre-fold sections, an open design with independent servo drives for each section, squaring devices in the trombone and compression section, and servo rear carton back side jogger/spanker.  The SL model includes an independent high speed precision servo driven back fold system which is very easy to setup for the operators.

Additional options include: Memory Job recall for the motorized carriers and more.

Click here to view Megafold videos

The Megafold is available in widths from 1450mm (57") to 3200mm (126")

MEGAFOLD details page

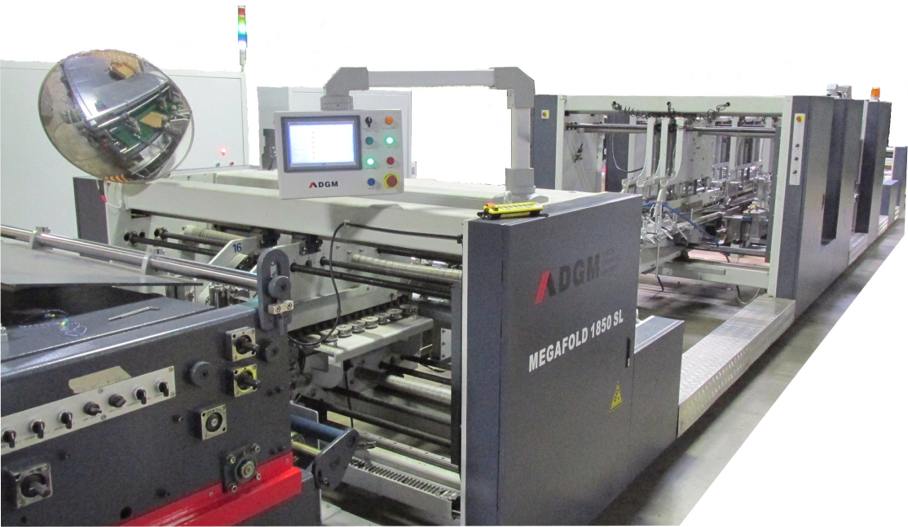

PPCTS DGM Megafold Folder Gluer

PPCTS DGM Megafold Folder Gluer

MEGAFOLD C - Without pre-folding, Suitable for straight-line boxes.
MEGAFOLD AC - Without pre-folding, Suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD PC - Suitable for straight-line, crash-lock bottom & double wall boxes.
MEGAFOLD SL - Suitable for straight-line, crash-lock bottom & double wall, 4 & 6-corner boxes.


For more information contact PPCTS at 262-695-7536 or fill the contact form below:

If you have questions concerning our products, services or have special requests, send mail to info@ppcts.com
